Feature

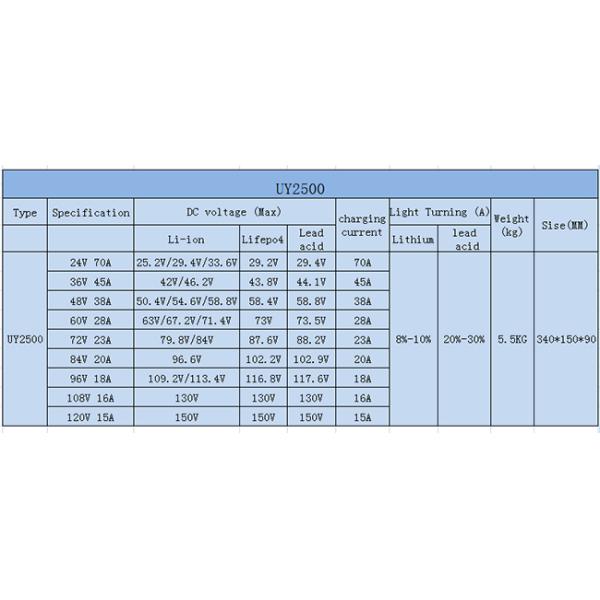

Battery charger parameters
1. Double-sidedFR-4 PCB
2.SAMXON electrolytic capacitors
3. Pure copper transformers
4. Circuit topology: CCM PFC + classical full bridge topology.
| Model: | UY2500 | Maximum power: | 2500W |
| Housing: | Aluminium alloy | Size: | 303x150x90mm |
| Input: | 100-120Vac/200-240Vac | Communication: | CAN,RS485 |
| Maximum efficiency: | > = 89% | Operating temperature: | -20 ila 40 ℃ |
| Storage temperature: | -40 ila + 70 ℃ | Noise: | <= 40dB |
| Cooling: | Smart cooling fan controlled by Temperatur |
| Protection: | 1. input under-voltage and over-voltage protection.
2. overheating protection.
3. output empty load protection.
4. output short and reverse protection.
5. output over-current and over-voltage protection. |
Product Steps
All of our chargers are tested at least 4 times before leaving the factory and undergo 100% full power aging and baking tests. In order to reach the final result and give our customers the best quality products and services.
About us
- 2014 Guangzhou Yunyang Electronic Technology Co., Ltd. was established in Guangzhou, Guangdong.
- 2016 Prepare to build a new factory (with an expanded area of 1500m ²) It passed the lSO9001lSO4001 system certification, and the product passed the TUV Rheinland CB certification for the first time.
- 2018 Expanded the production scale again and moved to a new location. The area is expanded to 3000 m ².
- 2019 Become a high-tech enterprise, with 12 authorized patents; In the same year, Wuxi Yunyang Electronic Technology Co., Ltd. was established.
- 2020 Realize fine management, equipped with two fully automatic SMT production lines.
- 2022 The UL CB CE GS KC FCC RCM DOE CQC certificates have be obtained by many products.
FAQ
Q: How do I choose the charger?
A: To make sure our charging battery is suitable for your package,
Please send us the following information:
(1) battery type (2) number of series units (3) battery pack capacity (AH) (4) maximum charging voltage.
Q: How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q: Can I have a sample order?
A: Yes, we can provide an initial sample. But our samples are not free. We need to charge for the samples.
This moped battery charger uses a half-bridge topology and also incorporates an MCU for functional expansion, allowing for personalisation such as communication, charging profile setting and multi-charge mode selection, etc.
